Merlin CT1650 PLUS Gas Interlock Panel

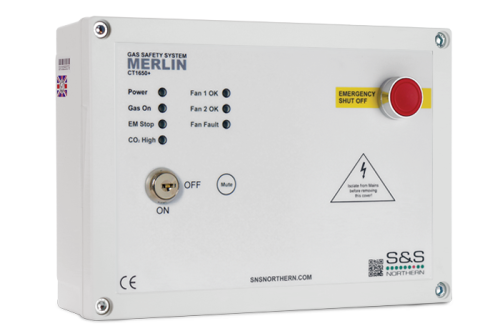

Merlin CT1650 PLUS Gas Interlock Control Panel

The Merlin CT1650+ ventilation interlock system is specifically designed for use in commercial kitchens to meet BS6173. This panel is designed for use when kitchen appliances do have flame failure devices fitted, therefore gas proving is not a requirement.

The Merlin CT1650+ System acts as an interlock between the ventilation system and the gas solenoid valve. The systems uses unique built in current monitors displaying the exact fan current, in order to interlock with the ventilation with precision accuracy.

Features

• Allows Compliance with BS6173 for commercial kitchens
• To be used when all appliances have flame failure devices
• Internal LCD Display of the fan current for simple installation
• Set high and low fan current range
• Reliable method of interlock, with no moving parts there is little to go wrong
• Will accept remote and emergency knock-off buttons
• Can monitor 2 fans with running currents between 0.1A – 18A
• Clear LED display for system indication
• Covered by S&S Northern Ltd 3 year warranty

Operation

Merlin CT1650 PLUS Gas Interlock Control Panel is for use where equipment has no flame failure devices.

To operate the panel the fans should be turned to the “on” position, once our panel receives a signal to indicate the fans are operating turn the key to the “on” position this will open the gas solenoid valve. If the fans should fail, the “fan fault” LED on the panel will illuminate and the gas solenoid valve will close. When there is a “fan fault” the supply fan or extract fan led will flash to inform the electrician or kitchen staff which fan has failed.

Operating the system in the above manner will ensure the requirements of BS6173: 2001.

A Gas Safe installer would be required to fit the gas solenoid valve. Check the register at www.gassaferegister.co.uk.
