Plate Mounted Axial Fan -

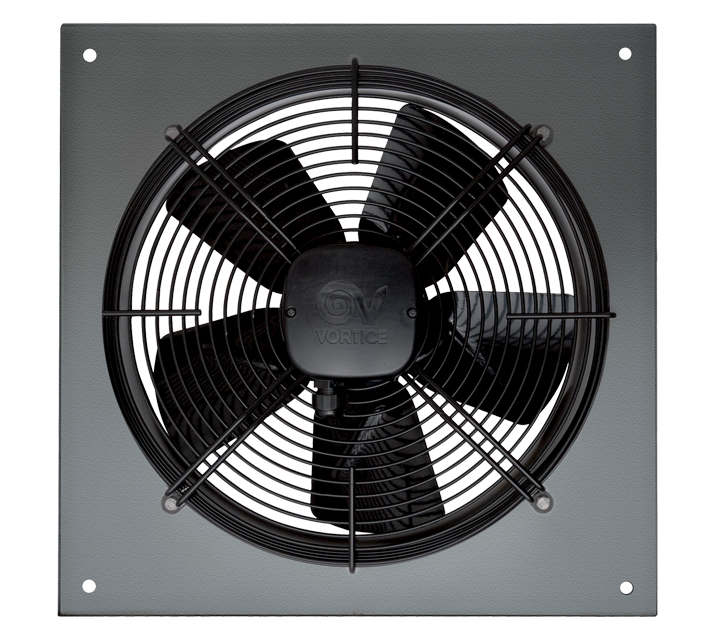

Plate Mounted Axial Fan

This fan is suitable for use in ventilation extract or supply systems.

Mounting plate and impellers are manufactured from galvanised steel and powder coated standard black.  Protection guard and terminal box.

Fans have sickle blades and protection guards, IP54 rated motors and terminal boxes.  Sealed for life bearings.

Operating temperatures between -30^oC - +60^oC.

All speed regulatable.

Available in single phase 240/1/50Hz and 3 phase 380/440/3/50Hz.

Standard airflow air over motor/blade.  Also available airflow air over blade / motor with or without mounting plate for AC condensers.

Fan is maintenance free and reliable.

Options and Accessories

• Gravity Louvre Shutter
• Telescopic Wall Sleeve
• Speed Controller

 Download Data Sheet

All prices include VAT (where applicable)

•

  • CVPMAF-250-2-1 Plate Mounted Axial Fan (2650rpm)
  • 240/1/50Hz
  • £187.63

  Quantity:  at  £187.63  each Add To Basket
•

  • CVPMAF-250-4-1 Plate Mounted Axial Fan (1400rpm)
  • 240/1/50Hz
  • £187.63

  Quantity:  at  £187.63  each Add To Basket
•

  • CVPMAF-300-2-1 Plate Mounted Axial Fan (2650rpm)
  • 240/1/50Hz
  • £195.30

  Quantity:  at  £195.30  each Add To Basket
•

  • CVPMAF-300-4-1 Plate Mounted Axial Fan (1380rpm)
  • 240/1/50Hz
  • £195.30

  Quantity:  at  £195.30  each Add To Basket
•

  • CVPMAF-300-4-3 Plate Mounted Axial Fan (1380rpm)
  • 380-440/3/50Hz
  • £208.08

  Quantity:  at  £208.08  each Add To Basket
•

  • CVPMAF-350-4-1 Plate Mounted Axial Fan (1380rpm)
  • 240/1/50Hz
  • £208.08

  Quantity:  at  £208.08  each Add To Basket
•

  • CVPMAF-350-4-3 Plate Mounted Axial Fan (1380rpm)
  • 380-440/3/50Hz
  • £208.08

  Quantity:  at  £208.08  each Add To Basket
•

  • CVPMAF-350-6-1 Plate Mounted Axial Fan (920rpm)
  • 240/1/50Hz
  • £208.08

  Quantity:  at  £208.08  each Add To Basket
•

  • CVPMAF-350-6-3 Plate Mounted Axial Fan (920rpm)
  • 380-440/3/50Hz
  • £195.30

  Quantity:  at  £195.30  each Add To Basket
•

  • CVPMAF-400-4-1 Plate Mounted Axial Fan (1400rpm)
  • 240/1/50Hz
  • £231.20

  Quantity:  at  £231.20  each Add To Basket
•

  • CVPMAF-400-4-3 Plate Mounted Axial Fan (1400rpm)
  • 380-440/3/50Hz
  • £231.20

  Quantity:  at  £231.20  each Add To Basket
•

  • CVPMAF-400-6-1 Plate Mounted Axial Fan (920rpm)
  • 240/1/50Hz
  • £231.20

  Quantity:  at  £231.20  each Add To Basket
•

  • CVPMAF-400-6-3 Plate Mounted Axial Fan (920rpm)
  • 380-440/3/50Hz
  • £231.20

  Quantity:  at  £231.20  each Add To Basket
•

  • CVPMAF-450-4-1 Plate Mounted Axial Fan (1380rpm)
  • 240/1/50Hz
  • £281.78

  Quantity:  at  £281.78  each Add To Basket
•

  • CVPMAF-450-4-3 Plate Mounted Axial Fan (1380rpm)
  • 380-440/3/50Hz
  • £281.78

  Quantity:  at  £281.78  each Add To Basket
•

  • CVPMAF-450-6-1 Plate Mounted Axial Fan (920rpm)
  • 240/1/50Hz
  • £281.78

  Quantity:  at  £281.78  each Add To Basket
•

  • CVPMAF-450-6-3 Plate Mounted Axial Fan (920rpm)
  • 380-440/3/50Hz
  • £281.78

  Quantity:  at  £281.78  each Add To Basket
•

  • CVPMAF-500-4-1 Plate Mounted Axial Fan (1400rpm)
  • 240/1/50Hz
  • £417.79

  Quantity:  at  £417.79  each Add To Basket
•

  • CVPMAF-500-4-3 Plate Mounted Axial Fan (1400rpm)
  • 380-440/3/50Hz
  • £417.79

  Quantity:  at  £417.79  each Add To Basket
•

  • CVPMAF-500-6-1 Plate Mounted Axial Fan (925rpm)
  • 240/1/50Hz
  • £417.79

  Quantity:  at  £417.79  each Add To Basket
•

  • CVPMAF-500-6-3 Plate Mounted Axial Fan (925rpm)
  • 380-440/3/50Hz
  • £417.79

  Quantity:  at  £417.79  each Add To Basket
•

  • CVPMAF-550-4-1 Plate Mounted Axial Fan (1300rpm)
  • 240/1/50Hz
  • £480.12

  Quantity:  at  £480.12  each Add To Basket
•

  • CVPMAF-550-4-3 Plate Mounted Axial Fan (1300rpm)
  • 380-440/3/50Hz
  • £480.12

  Quantity:  at  £480.12  each Add To Basket
•

  • CVPMAF-550-6-1 Plate Mounted Axial Fan (925rpm)
  • 240/1/50Hz
  • £480.12

  Quantity:  at  £480.12  each Add To Basket
•

  • CVPMAF-550-6-3 Plate Mounted Axial Fan (925rpm)
  • 380-440/3/50Hz
  • £480.12

  Quantity:  at  £480.12  each Add To Basket
•

  • CVPMAF-630-4-1 Plate Mounted Axial Fan (1410rpm)
  • 240/1/50Hz
  • £566.06

  Quantity:  at  £566.06  each Add To Basket
•

  • CVPMAF-630-6-1 Plate Mounted Axial Fan (930rpm)
  • 240/1/50Hz
  • £566.06

  Quantity:  at  £566.06  each Add To Basket
•

  • CVPMAF-630-6-3 Plate Mounted Axial Fan (930rpm)
  • 380-440/3/50Hz
  • £566.06

  Quantity:  at  £566.06  each Add To Basket
•

  • CVPMAF-630-8-3 Plate Mounted Axial Fan (680rpm)
  • 380-440/3/50Hz
  • £566.06

  Quantity:  at  £566.06  each Add To Basket
•

  • CVPMAF-710-6-1 Plate Mounted Axial Fan (920rpm)
  • 240/1/50Hz
  • £1193.51

  Quantity:  at  £1193.51  each Add To Basket
