Merlin CT1500S Gas Interlock Panel

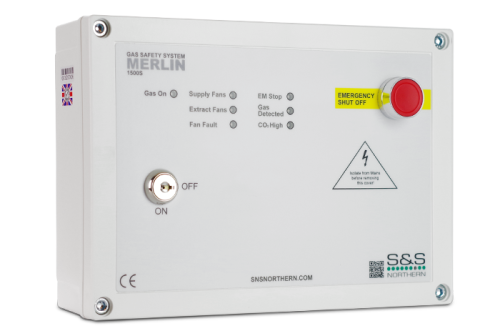

Merlin CT1500S Gas Interlock Control Panel

The Merlin 1500S ventilation interlock system is specifically designed for use in commercial kitchens to meet BS6173. This panel is designed for use when the kitchen appliances do have flame failure devices fitted, therefore gas proving is a not a requirement.

The Merlin 1500S System acts as an interlock between the ventilation system and the gas solenoid valve. The systems can work in conjunction with both current monitors and air pressure differential switches in order to interlock with up to 4 fans.

Features

• Allows Compliance with BS6173 for commercial kitchens
• Clear LED display for system indications
• BMS Normally Closed or Normally Open and Common
• Interlocking with fans using either Air PD switches or fan current sensors
• Easy installation
• Will accept remote and emergency knock-off buttons
• Covered by S&S Northern Ltd 3 year warranty

Operation

Merlin CT1500S Gas Interlock Control Panel is for use where equipment has no flame failure devices.

To operate the panel the fans should be turned to the “on” position, once our panel receives a signal to indicate the fans are operating turn the key to the “on” position this will open the gas solenoid valve. If the fans should fail, the “fan fault” LED on the panel will illuminate and the gas solenoid valve will close. When there is a “fan fault” the supply fan or extract fan led will flash to inform the electrician or kitchen staff which fan has failed.

Operating the system in the above manner will ensure the requirements of BS6173: 2001.

A Gas Safe installer would be required to fit the gas solenoid valve. Check the register at www.gassaferegister.co.uk.
