Merlin 2000S Gas Interlock Panel

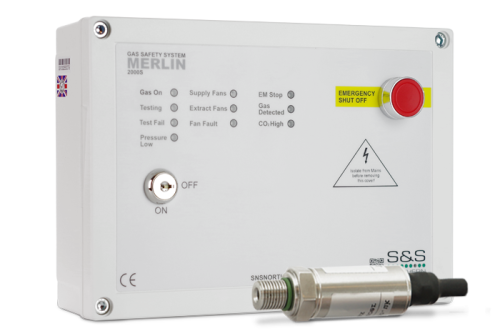

Merlin 2000S Gas Interlock Control Panel

The Merlin 2000S ventilation interlock system is specifically designed for use in commercial kitchens to meet BS6173. This panel is designed for use when the kitchen appliances do not have flame failure devices fitted, therefore gas proving is a requirement.

The Merlin 2000S System acts as an interlock between the ventilation system and the gas solenoid valve. The system is compatible with both current monitors and air pressure differential switches in order to interlock with up to 4 fans.

Features

• Allows Compliance with BS6173 for commercial kitchens
• Clear LED display for system indications
• Gas proving for when kitchen appliances are not fitted with flame failure devices
• BMS Normally Closed or Normally Open and Common
• Low Pressure monitoring for incoming gas supply
• Interlocking with fans using either Air PD switches or fan current sensors to interlock up to 4 fans
• Easy Installation
• Will accept remote emergency knock-off buttons
• Covered by S&S Northern Ltd 3 year warranty

Operation

Merlin 2000S Gas Interlock Control Panel is for use where equipment has no flame failure devices.

To operate the panel the fans should be turned to the “on” position, once our panel receives a signal to indicate the fans are operating turn the key to the “on” position this will open the gas solenoid valve. If the fans should fail, the “fan fault” LED on the panel will illuminate and the gas solenoid valve will close. When there is a “fan fault” the supply fan or extract fan led will flash to inform the electrician or kitchen staff which fan has failed.

Operating the system in the above manner will ensure the requirements of BS6173: 2001.

A Gas Safe installer would be required to fit the gas solenoid valve. Check the register at www.gassaferegister.co.uk.
