VORTICEL A-E RANGE

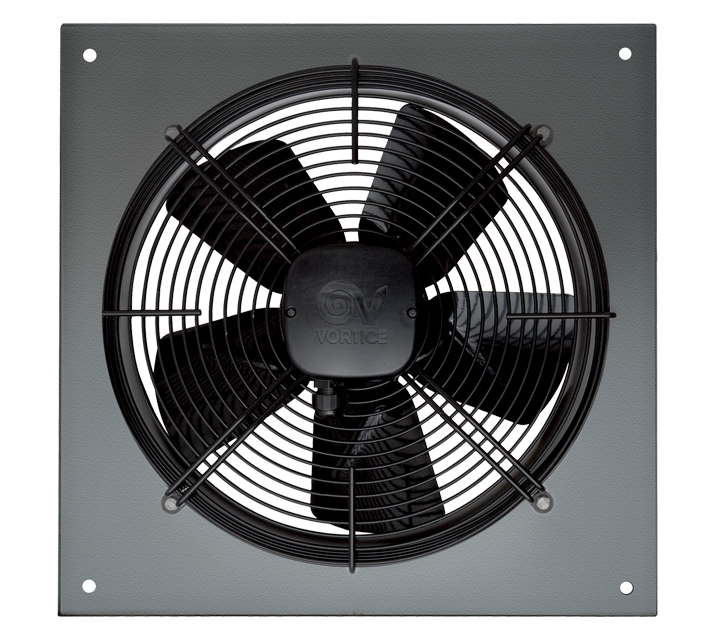

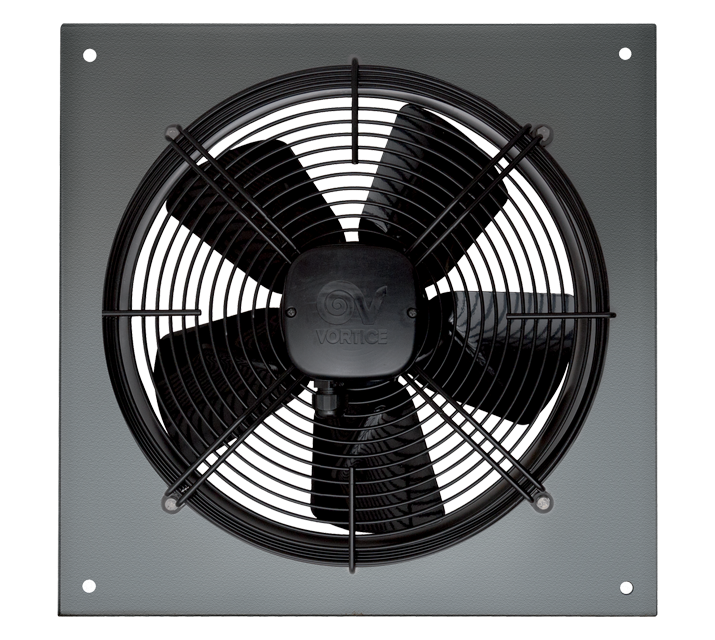

Low-pressure plate axial fans Industrial wall-mounted slim axial fans, available in different diameters and in single and three phase versions, designed for the ventilation of commercial and industrial premises, such as offices, gyms, restaurants, discos, dry cleaners and warehouses.
Key features
Reduced axial clearance
• Possibility of installation in the presence of pressure drops (e.g. discharge via duct or through filters) Robust and weatherproof construction.
Motors with high (IP54) degree of protection against dust and water. Versions 19 models, in single and three-phase versions, with 2, 4 and 6 poles, with a nominal diameter between 250 and 630 mm.
Technical features
Wall panels made of pressed steel, pickled, phosphated and epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to aggressive agents, in grey colour with hammered finish.
Ventilation ports, fashioned in one piece with the wall panels, elongated profile, gauged to optimize airflow. Safety and anti-bird protective grilles designed in accordance with the UNI ISO 13857 standard combining the function of motor bracket, made of electrically welded steel rings with epoxy black paint finish.
Easy removal simplifies the maintenance and cleaning of the fan. Class F thermally protected asynchronous rotor type motors in order to contain the axial clearance of the fan, with shafts mounted on double shielded ball bearings, characterized by high (IP54) degree of protection against dust and water, speed adjustable by Vortex controllers.
Starting capacitors of the single-phase models comply with the EN 60252-1 standard and are third-party certified. Dynamically balanced impeller (UNI ISO 1940, Class 6.3); variable number of blades from 4 to 7 according to the model, moulded in electrically galvanised sheet steel and polyester powder-coated
